UPDATE 10/2017: My Barco has been sold and now resides in England! I will keep this page and the manuals online for anyone who needs the information.
Below you will find a picture of my Barco plus copies of the manuals I received with it. Feel free to copy any of the manuals. (If you have found this page useful I would appreciate hearing from you)
|
|
A fine tool from the past
Many years ago I worked at a local cemetery. One day while cleaning out an old storage building I found a Barco gasoline powered jackhammer. I was told that the cemetery used it in the late 40's to jackhammer through frost and for tamping dirt and sod. I really didn't know much about it but it did look interesting. It was going to the scrap yard so I asked if I could purchase it. To my surprise they gave it to me along with the manuals. It didn't take long to get it running. I have used the Barco on a few occasions and find it really does work and is quite simple to operate. Just fill the gas tank with the proper fuel/oil mix, connect the ignition to a 6 volt battery, turn on the fuel, push the rod at the top down and release and hang on!
|
|
How it works:
The Barco consists of a piston, cylinder and ignition system. There is no crank shaft, connecting rod or valves yet it is a gasoline engine. The principle behind the Barco is quite simple. When the spark plug fires it drives the piston to the bottom of the cylinder. During it's travel down the piston draws in fresh fuel/air and expels the exhaust. At the bottom the piston hits the anvil and a heavy spring. This spring pushes the piston back to the top, compressing the fuel/air mix. The spark plug fires and the process repeats.
|
|
Information needed: If you have manuals for other Barco model's and would like to share them I would be glad to post them here. Also, I would appreciate any information about the history of the Barco Jackhammer or the company.
|
(Just click on a manual to view it)
|
Manual for gas hammer Models H-6 and J-2
|
Manual for gas hammer H-6B, H-6 and J-2 and gas drillers J-2 and J-2A |
Drawing and parts lists model H-6B Drawing type "A" Ignition AGH2941 Drawing major parts assembled
|
|
Some interesting Barco Advertizments
|
Manual for unit TYTAMPER
A big Thank You to Brian Mann for contributing this document! |
A Barco being demonstrated at a show in 2004 Photo by Jacob Merriwether |
|

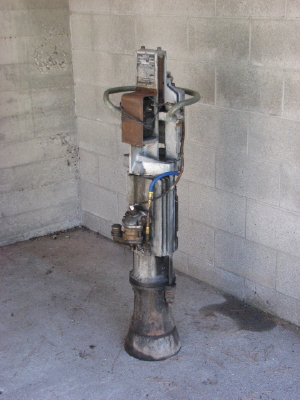

The model BR-5 Barco pictured above belongs to Peter Kinzie of Plattsville Ontario Canada.
|

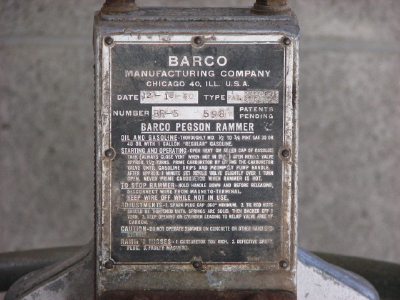

The information tag states it was manufactured 12-13-1950 making this the newest Barco we have seen. |
|

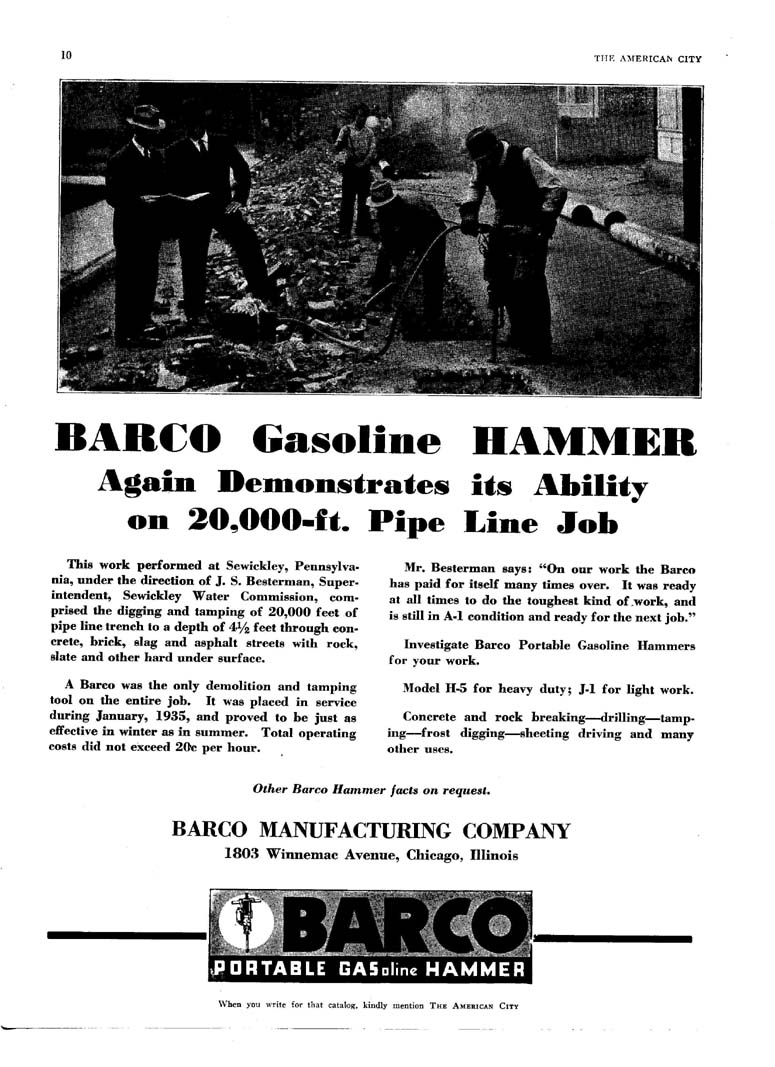

A 1937-38 Barco sales ad
|
|

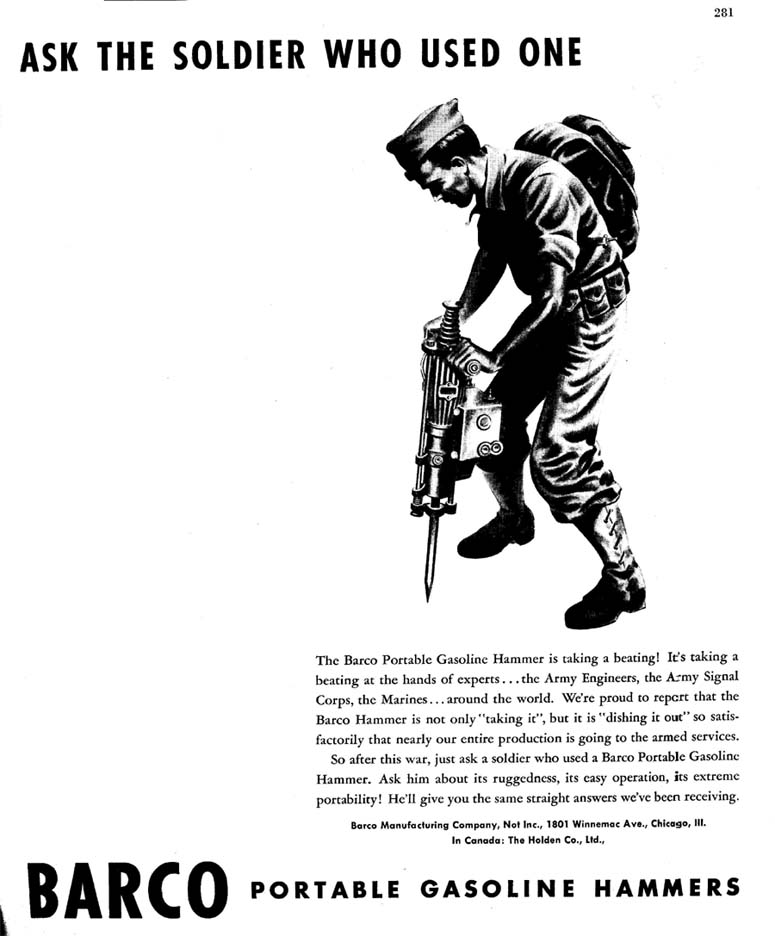

1943 Barco Ad |
|

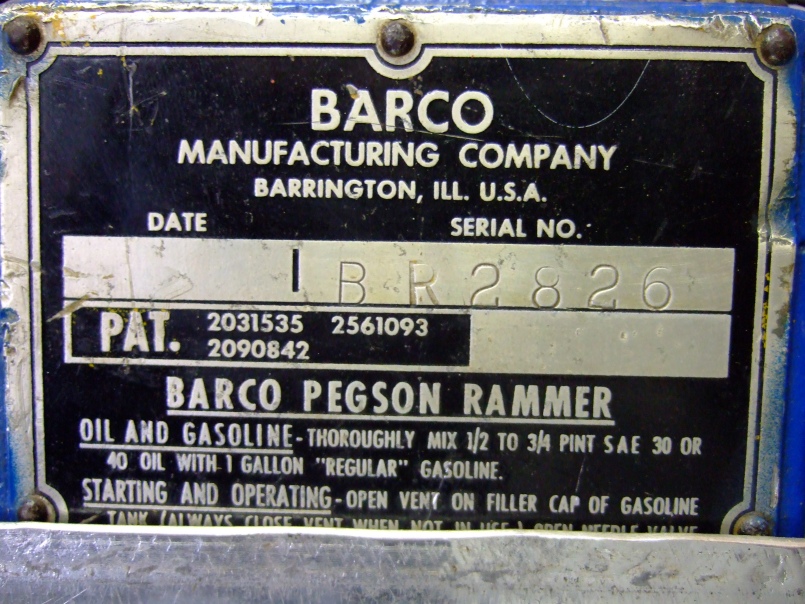

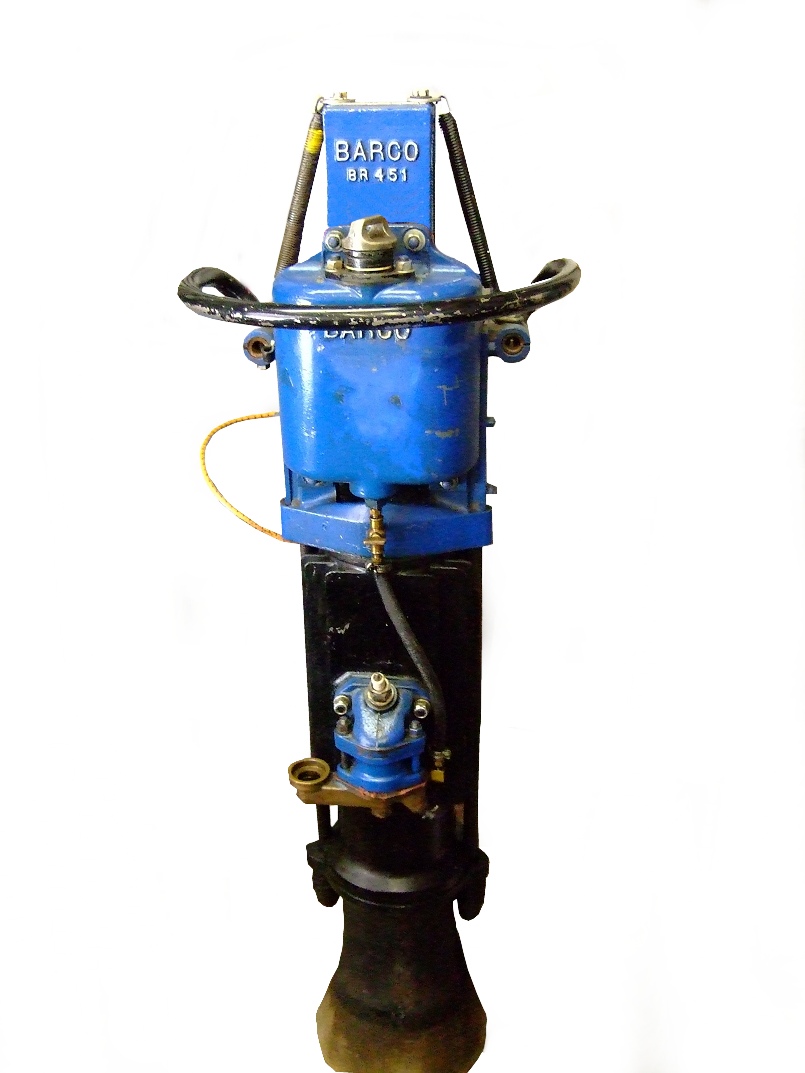

These pictures are of a Barco Pegson Rammer BR451 that was rescued from a scrap pile. The man who found it contacted Barco and was told that the division that made these rammers had been bought out by the "Stihl" Company. If anyone has any information about this machine please email me
|
